Anti-Corrosion Rugged Camera
耐腐蝕鋁合金攝影機(iCUBE series)

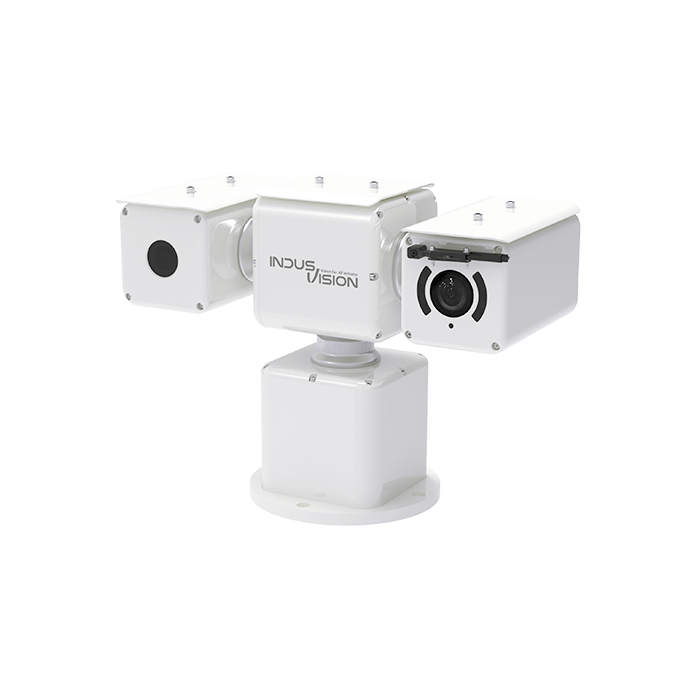

iCUBE-PD-100
雙管+迴轉台 (熱像儀/ 2MP 光學36倍變焦)　 點此圖進入了解

    Features

  • High Quality Aluminum Die-Casting Body
  • Salty Water Spray Test : KS C IEC 60068-2-52
  • Corrosion Resistance / Chemical Resistance Powder Coating Finish
  • 100% All Gear Mechanism structure : Suitable for Heavy Vibration Environment
  • Ingress Protection Rating : IP66
  • Full HD 2MP, 1/1.9" High Sensitivity STARVIS CMOS Sensor
  • Optical 36X(6~216mm) Zoom Lens & Digital 32X Zoom
  • 640 (h) x 512 (v) Resolution, 19mm or 13mm Lens
  • Thermal Sensitivity of Detector (NETD) s50mk@f#1.0
  • Germanium Glass for Thermal Camera
  • High Performance, Hybrid Infra-red LED, Visible Distance Max. 100m
  • Minimum I|luminance : 0.002Lux / OLux (IR IED On)
  • Pan / Tilt Range : 360°Endless/ +90°~ -90°(360 Endless:Option)
  • Pan / Tilt Speed : 0.025~120°/sec
  • 256 Presets / 8Tours / 8Groups / 8Swings
  • Support ONVIF / Supprt RS485

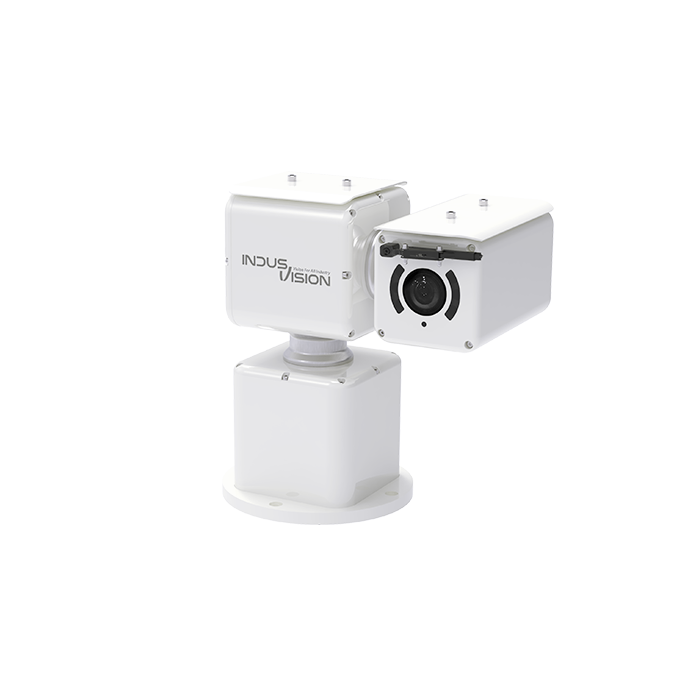

iCUBE-PS-100
單管+迴轉台 (2MP 光學36倍變焦)　 點此圖進入了解

    Features

  • High Quality Aluminum Die-Casting Body
  • Salty Water Spray Test : KS C IEC 60068-2-52
  • Corrosion Resistace / Chemical Resistance Powerder Coating Finish
  • 100% All Gear Mechanism structure : Suitable for Heavy Vibration Environment
  • Ingress Protection Rating : IP66
  • Full HD 2MP, 1/1.9" High Sensitivity STARVIS CMOS Sensor
  • Pan / Tilt Range : 360° Endless / +90 °~ -90°(360°Endless:Option)
  • Pan / Tilt Speed : 0.025°~120°/sec
  • Focal Length / Zoom : 6~216mm / Optical 36x & Digital 32x
  • High Performance, Hybrid Infra-red LED, Visible Distance Max. 100m
  • 256 Presets / 8 Tours / 8Groups / 8Swings
  • Support ONVIF / Supprt RS485

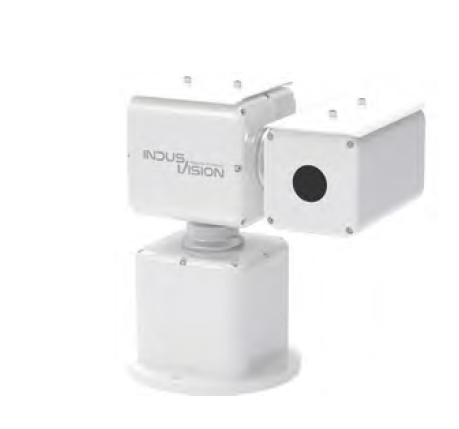

iCUBE-PS-100T
單管+迴轉台 (熱像儀)
　 點此圖進入了解

    Features

  • High Quality Aluminum Die-Casting Body
  • Salty Water Spray Test : KS C IEC 60068-2-52
  • Corrosion Resistace / Chemical Resistance Powerder Coating Finish
  • 100% All Gear Mechanism structure : Suitable for Heavy Vibration Environment
  • Ingress Protection Rating : IP66
  • 640 (h) x 512 (v) Resolution, 19mm or 13mm Lens
  • Thermal Sensitivity of Detector (NETD) s50mk@f#1.0
  • Germanium Glass for Thermal Camera
  • Pan / Tilt Range : 360°Endless / +90 °~ -90°(360° Endless:Option)
  • Pan / Tilt Speed : 0.025°~120°/sec
  • 256 Presets / 8Tours / 8Groups / 8Swings
  • Support ONVIF / Supprt RS485

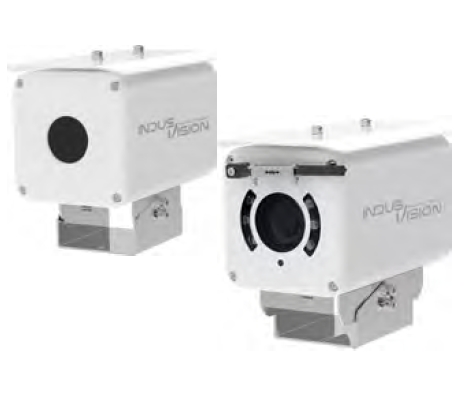

iCUBE-PF-100(T)
單管 固定式 (熱像儀/2MP 光學36倍變焦)


　 點此圖進入了解

    Features

  • High Quality Aluminum Die-Casting Body
  • Salty Water Spray Test : KS C IEC 60068-2-52
  • Corrosion Resistance / Chemical Resistance Powder Coating Finish
  • Ingress Protection Rating : IP66
  • Germanium Glass for Thermal Camera
  • Full HD 2MP, 1/1.9" High Sensitivity STARVIS CMOS Sensor
  • Optical 36X(6~216mm) Zoom Lens & Digital 32X Zoom
  • 640 (h) x 512 (v) Resolution, 19mm or 13mm Lens
  • Thermal Sensitivity of Detector (NETD) s50mk@f#1.0
  • High Performance, Hybrid Infra-red LED, Visible Distance Max. 100m
  • Minimum Illuminance : 0.002Lux / OLux (IR IED On)
  • Model
    • iCUBE-100 : Optical Camera / iCUBE-100T : Thermal Camera





““““““““““
