Explosion Proof Bullet Camera
防爆槍型攝影機(PL series)

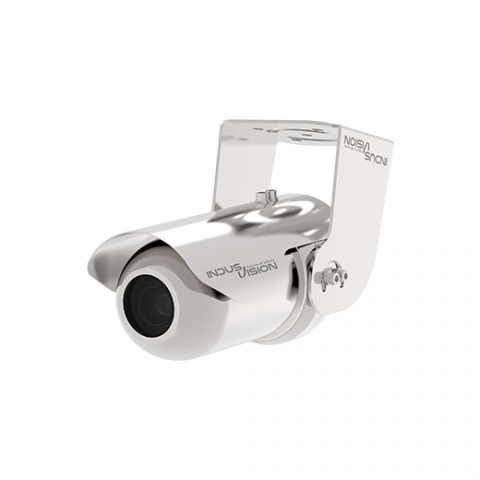

iVEX-PL-10
2MP 防爆槍型 30倍變焦網路攝影機
TS認證

 點此圖進入了解

    Features

  • Ex Certifications : IECEx / ATEX / KCs / NEPSI / JPEx
  • EX Grade : Ex d IIC T6 Gb, Zone 1& 2
  • Ex tb IIIC T85 C Db, Zone 21& 22
  • Electro-polished AISI 316L Stainless Steel
  • Lost-wax process without welding
  • Ingress Protection Rating : IP67
  • Ambient Temperature : -40°C ~ +65°C
  • Full HD 2 Megapixel, 1/1.9" CMOS Sensor
  • 30X Zoom Lens (6.0mm ~ 180 mm)
  • ONVIF (Profile-S) support
  • POE Class 3 (IEEE 802.3af) support

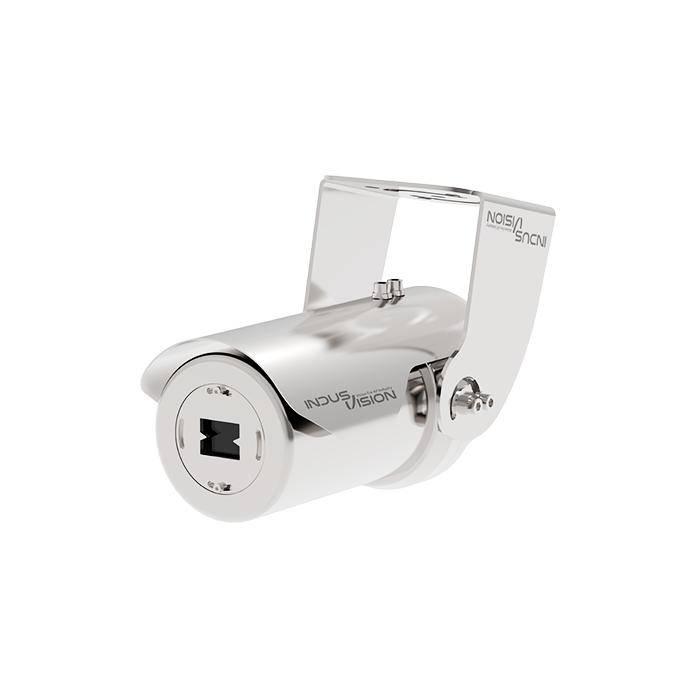

iVEX-PL-1000SGT
防爆槍型 熱像儀
TS認證
  點此圖進入了解

    Features

  • Ex Certifications : IECEx / ATEX / KCs / JPEx
  • EX Grade : Ex d IIC T6 Gb, Zone 1& 2
  • Ex tb IIIC T85 C Db, Zone 21 & 22
  • Electro-polished AISI 316L Stainless Steel
  • Lost-wax process without welding
  • Ingress Protection Rating : IP67
  • Ambient Temperature : -40°C~+65°C
  • 640 (h) x 512 (v) Resolution, 19mm or 13mm Lens
  • Thermal Sensitivity of Detector (NETD) <50mk@f#1.0
  • Measurement Range : -20°C ~+120°C/100°C ~550°C
  • ONVIF (Profile-S) support
  • PoE Class 3 (IEEE 802.3af) support

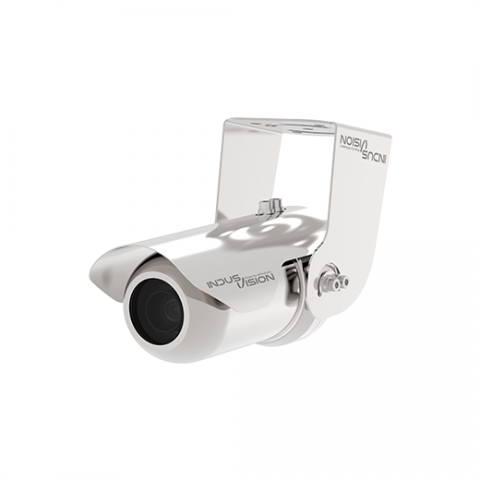

iVEX-PL-20
2MP 防爆槍型 20倍變焦 網路攝影機
TS認證

 　 點此圖進入了解

    Features

  • Ex Certifications : IECEx / ATEX / KCs / JPEx
  • EX Grade : Ex d IIC T6 Gb, Zone 1& 2
  • Ex tb IIIC T85 C Db, Zone 21 & 22
  • Electro-polished AISI 316L Stainless Steel
  • Lost-wax process without welding
  • Ingress Protection Rating : IP67
  • Ambient Temperature : -40°C~+65°C
  • 1/2.8" High Sensitivity STARVIS CMOS Sensor
  • Full HD 2 Megapixel
  • 30X Zoom Lens (5.2 ~ 104mm)
  • Minimum Illumination : 0.001 Lux
  • ONVIF (Profile-S) support
  • POE Class 3 (IEEE 802.3af) support / DC 12V

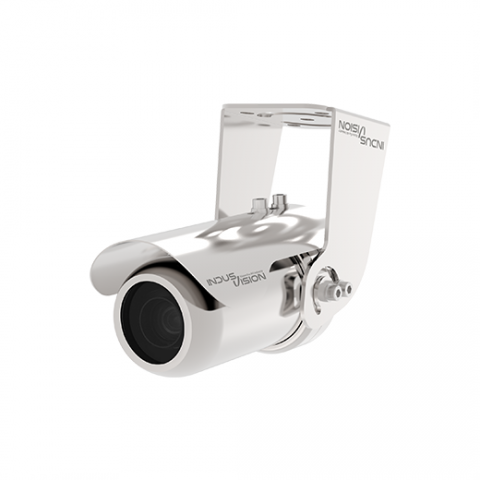

iVEX-PL-3011RA
2MP 防爆槍型 4倍變焦 網路攝影機
TS認證

  點此圖進入了解

    Features

  • Ex Certifications : IECEx / ATEX / KCs / JPEx
  • EX Grade : Ex d IIC T6 Gb, Zone 1& 2
  • Ex tb IIIC T85 C Db, Zone 21 & 22
  • Electro-polished AISI 316L Stainless Steel
  • Lost-wax process without welding
  • Ingress Protection Rating : IP67
  • Ambient Temperature : -40°C ~ +65°C
  • 1/2.8" High Sensitivity STARVIS CMOS Sensor
  • Full HD 2 Megapixel
  • 2.7 ~ 12 mm Motorized Lens
  • Minimum Illumination : 0.001 Lux
  • ONVIF (Profile-S) support
  • POE Class 3 (IEEE 802.3af) support
iVEX-PL-3111R
2MP 防爆槍型 4倍變焦 類比攝影機
TS認證

  點此圖進入了解

    Features

  • Ex Certifications : IECEx / ATEX / KCs / JPEX
  • EX Grade : Ex d IIC T6 Gb, Zone 1& 2
  • Ex tb IIIC T85C Db, Zone 21 & 22
  • Electro-polished AISI 316L Stainless Steel
  • Lost-wax process without welding
  • Ingress Protection Rating : IP67
  • Ambient Temperature : -40°C ~ +65°C
  • 1/2.8" High Sensitivity STARVIS CMOS Sensor
  • Full HD 2 Megapixel
  • 2.7~12mm Motorized Lens
  • Minimum Illumination : 0.03 Lux
  • Multi Format Video Output : AHD / TVI / CVI / CVBS
    • (1 Video Selection Output)

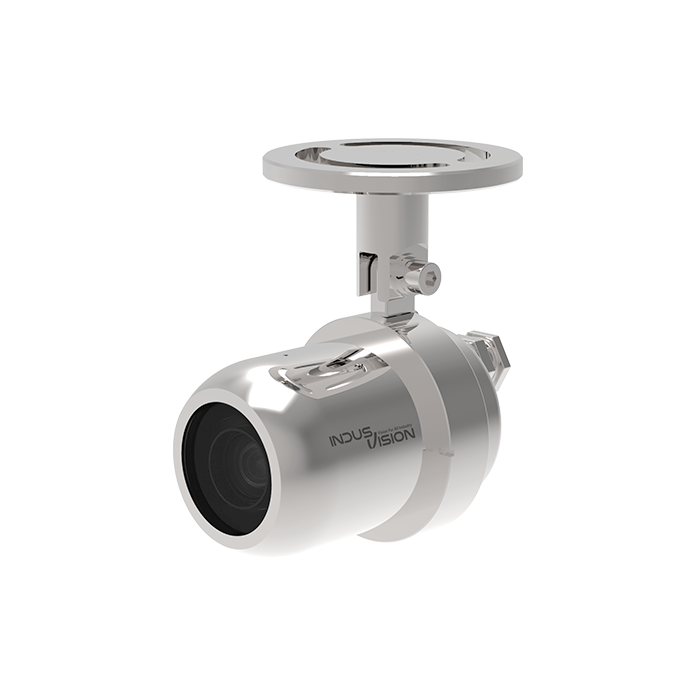

iVEX-PLM-3011R
2MP 防爆槍型 3倍變焦 網路攝影機
TS認證

　  點此圖進入了解

    Features

  • Ex Certifications : IECEx / ATEX / KCs / JPEx
  • EX Grade : Ex d IIC T6 Gb, Zone 1& 2
  • Ex tb IIIC T85 C Db, Zone 21 & 22
  • Electro-polished AISI 316L Stainless Steel
  • Lost-wax process without welding
  • Ingress Protection Rating : IP67
  • Ambient Temperature : -40°C ~ +65°C
  • Sony 1/2" Exmor CMOS 2MP Sensor
  • Full HD 2 Megapixel
  • 3.6 ~ 11 mm Motorized Lens
  • Minimum Illumination : 0.0001 Lux
  • ONVIF support / PoE Class 3 (IEEE 802.3af) support

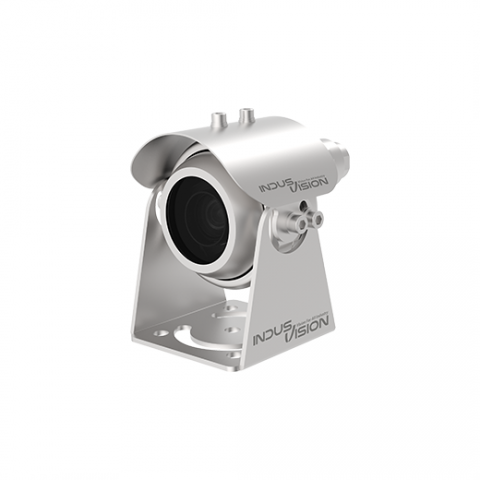

iVEX-PLs-3001R
2MP 迷你防爆槍型 全高清 網路攝影機
TS認證

　  點此圖進入了解

    Features

  • Ex Certifications : IECEx / ATEX / KCs / JPEx
  • EX Grade : Ex d IIC T6 Gb, Zone 1& 2
  • Ex tb IIIC T85 C Db, Zone 21 & 22
  • Electro-polished AISI 316L Stainless Steel
  • Lost-wax process without welding
  • Ingress Protection Rating : IP67
  • Ambient Temperature : -40°C ~ +65°C
  • 1/2.8" High Sensitivity STARVIS CMOS
  • Full HD 2 Megapixel
  • 2.7mm wide angle Lens
  • Minimum Illumination : 0.03 Lux
  • ONVIF support / PoE Class 3 (IEEE 802.3af) support

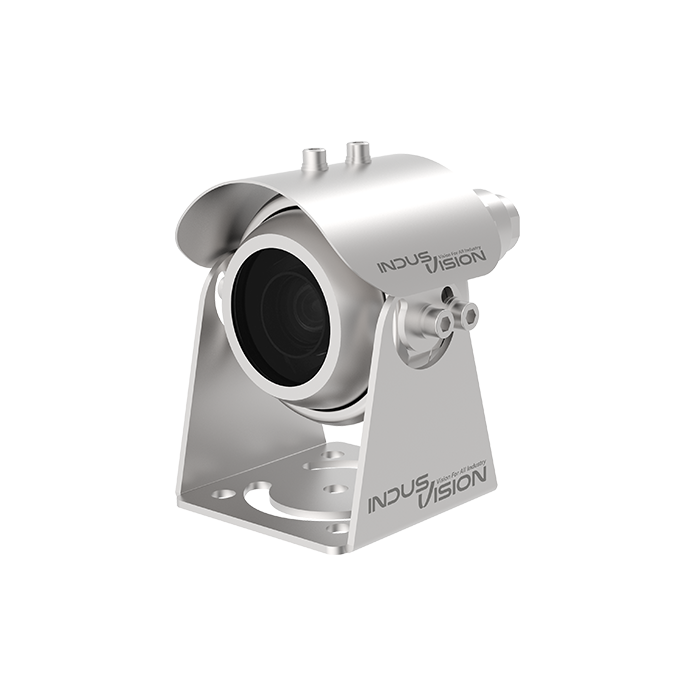

iVEX-PLs-3101R
2MP 迷你防爆槍型 全高清 類比攝影機
TS認證

　  點此圖進入了解

    Features

  • Ex Certifications : IECEx / ATEX / KCs / JPEx
  • EX Grade : Ex d IIC T6 Gb, Zone 1&2
  • Ex tb IIIC T85 C Db, Zone 21 & 22
  • Electro-polished AISI 316L Stainless Steel
  • Lost-wax process without welding
  • Ingress Protection Rating : IP67
  • Ambient Temperature : -25°C ~ +64°C
  • Sony 1/3" CMOS Sensor Full HD 2 Megapixel
  • 2.8mm Fixed Lens
  • Minimum Illumination : 0.0001 Lux / F1.2
  • Multi Format Video Output : AHD / TVI / CVI / CVBS
    • (1 Video Selection Output)

““““““““““
